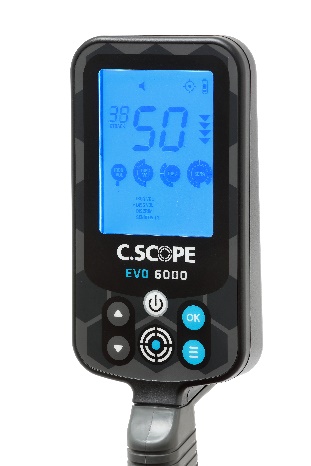

Using The Keypad For Motion Mode Detecting


When you are detecting, the up and down buttons  adjust the sensitivity of your EVO6000. Turn the sensitivity down if you find that you are getting spurious signals or you want to ignore some of the smaller deeper targets.

Press the pinpoint button to switch to and from pinpoint mode.

Press the up or down buttons to adjust sensitivity.

Press the menu button to open the menus.

Press the OK button to start and stop the on screen animation.


Using The Key Pad For Non-Motion Mode Detecting


A long press on the pinpoint button  will switch the EVO6000 to non-motion audio discrimination mode. The pinpoint indicator on the screen will flash and the animation on the screen will change. In the two non-motion detection modes the pinpoint button  resets the baseline level. You will need to reset the baseline level when ground conditions change.

Long press the pinpoint button to switch between detecting modes.

Short press the pinpoint button to reset the baseline level.

Press the up or down buttons to adjust sensitivity.

Press the menu button to open the menus.

Press the OK button to start and stop the on screen animation.


Using The Keypad For Navigating Menus


In the menus the up and down buttons  select a item from the current menu. Pressing the menu button  will move you the next menu. Pressing the OK button  will choose the current menu item.



Press the menu button to switch to the next menu.

Press the up or down buttons to select a menu item.

Press the OK button to choose the current menu item.
